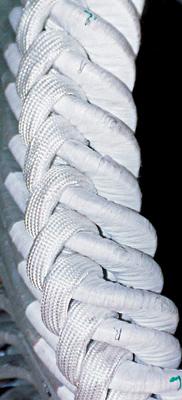

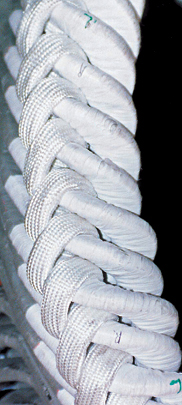

Cetaver® mixed cord

Construction :
- Made of : - Braid = Continuous glass yarn (Silionne).
- Core = Discontinuous glass yarn (Verranne).

- UNBLEACHED : (Textile ensimage). This is the quality standard.
- HEAT DESENSIMAGED : “white hot” - Ref : GDT 31.
Almost complete evacuation of textile ensimage. The fire loss is from 0.10 to 0.12 %. The test is made at 600 °C for 1 hour for then impregnation.
- PRE-PREG : On request, we can make a stage B impregnation of a class F resin. The cord is first heat stabilized to impregnation.
- The % of resin is ≥ 50% for diameters < 10 mm and ≥ 60% for diameters ≥ 10 mm of the cord’s weight.
- They are presented cut at length and packed in a waterproof aluminised bag and must be stored in a cold room (lifetime 6 months).

Applications :
- ELECTROTECHNICAL INDUSTRY.

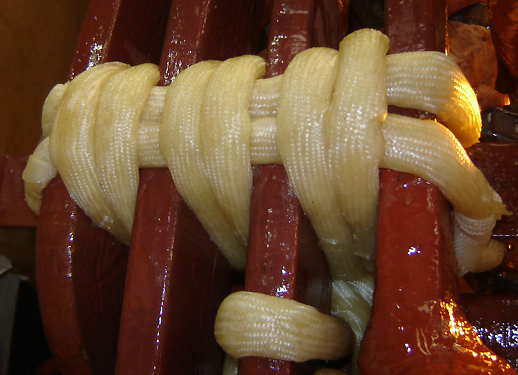

Mainly as stuffing and filling of sections and parts with impregnation by the user.

Product	Diameter	Weight per meter	Unit
SV 311	5 mm	18 g/m	M
SV 411	6 mm	22 g/m	M
SV 321	7 mm	30 g/m	M
SV 331	9 mm	42 g/m	M
SV 341	11 mm	56 g/m	M
SV 361	13 mm	74 g/m	M
SV 371	16 mm	106 g/m	M
SV 421	18 mm	125 g/m	M
SV 351	20 mm	149 g/m	M
SV 381	25 mm	220 g/m	M
SV 431	30 mm	275 g/m	M
SV 391	40 mm	345 g/m	M
