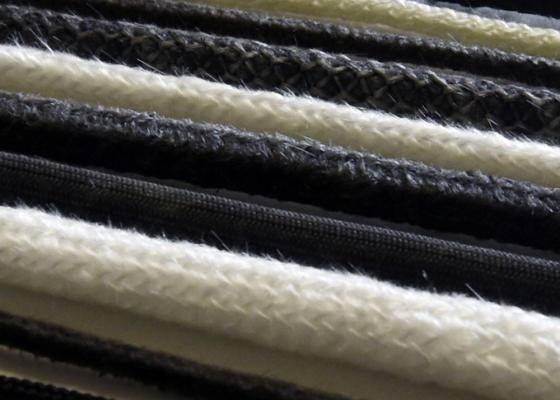

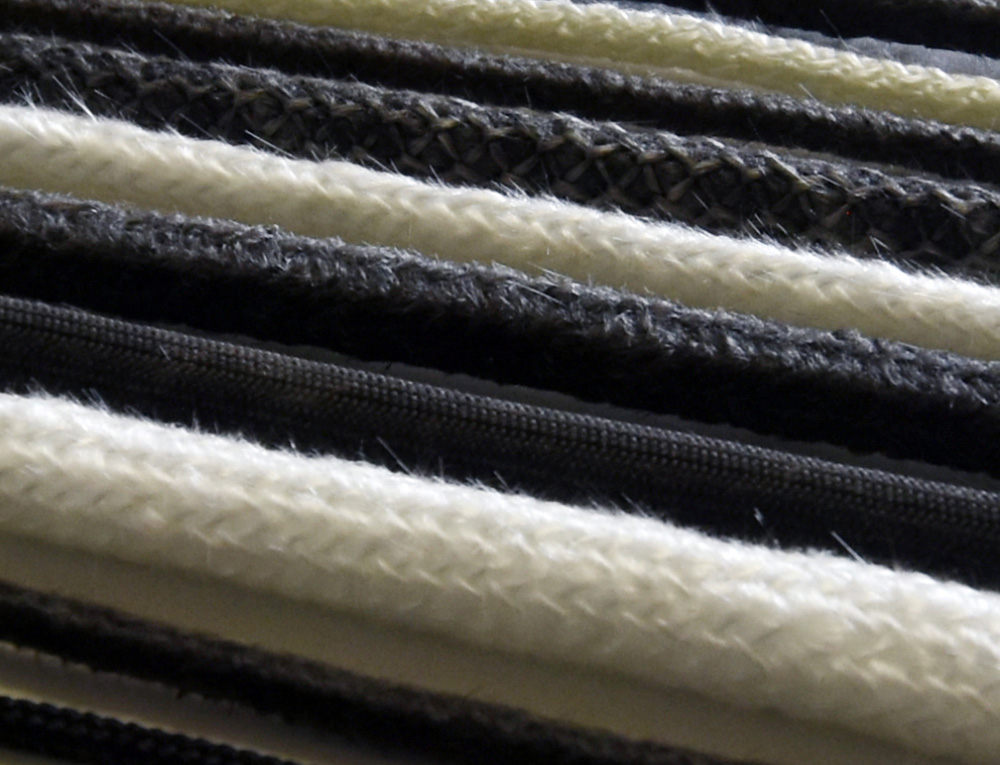

Cetaver® Glass fibre cord
Construction :
- Made of :
- BRAID = Discontinuous glass yarn assembled and twisted (Verranne).
- CORE = Discontinuous glass yarn (Verranne).
1.1 UNBLEACHED (Textile ensimage). This is the quality standard.
1.2 HEAT DESENSIMAGED "WHITE HOT" Ref : GDT 31.
Almost complete evacuation of textile ensimage.
The fire loss is from 0,10 to 0,12 %. The test is made at 600 °C for 1 hour for silicone impregnation.
- The cords are braided and get the reference " V "
Applications :
- ELECTROTECHNICAL.
Fillings and stuffings of sections or parts with impregnation by the user.
Product | Diameter | Weight per meter | Unit | Selection |
---|---|---|---|---|
V 32 | 6 mm | 18 g/m | M | |
V 14 | 8 mm | 28 g/m | M | |
V 34 | 12 mm | 40 g/m | M | |
V 31 | 13 mm | 55 g/m | M | |
V 15 | 15 mm | 40 g/m | M | |
V 17 | 18 mm | 74 g/m | M | |
V 27 | 18 mm | 87 g/m | M | |
V 35 | 20 mm | 110 g/m | M | |
V 18 | 24 mm | 93 g/m | M | |
V 28 | 28 mm | 140 g/m | M | |
V 36 | 32 mm | 202 g/m | M | |
V 22 | 35 mm | 172 g/m | M | |
V 37 | 40 mm | 290 g/m | M | |
V 23 | 50 mm | 440 g/m | M |
