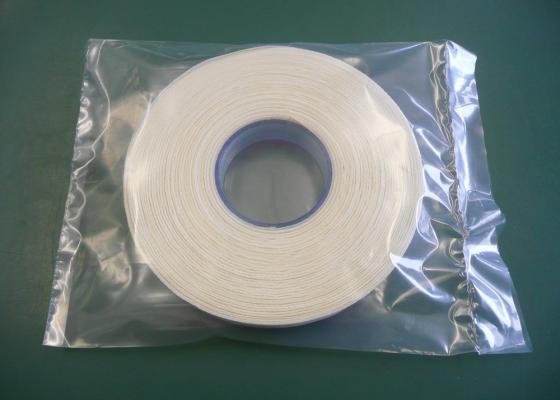

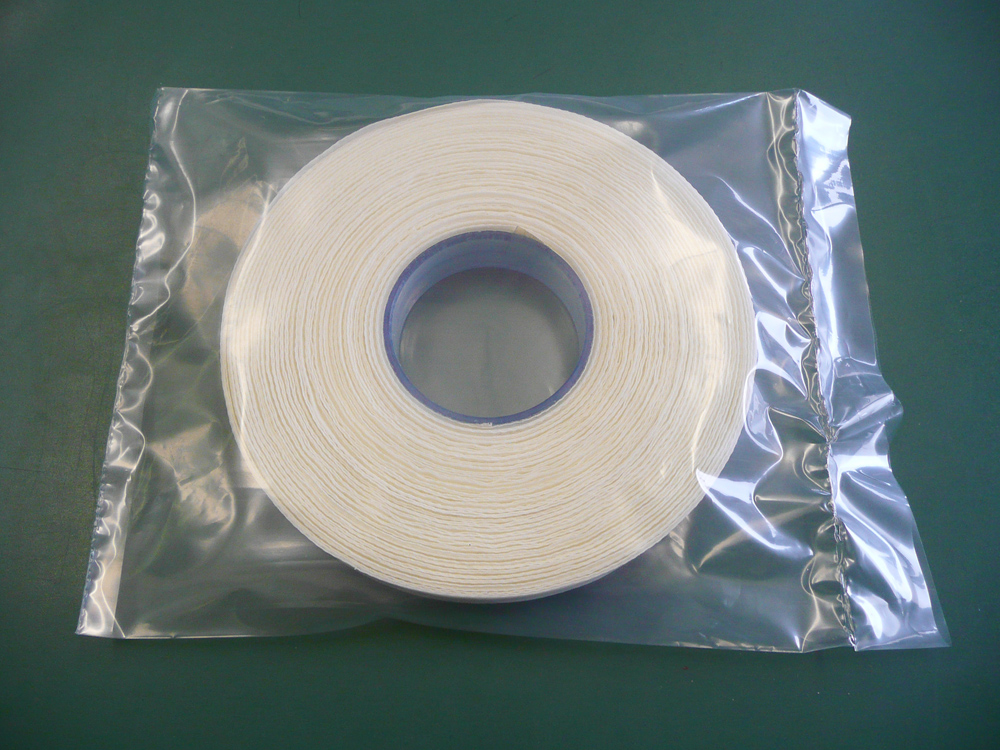

PREPREG polyester edged tape
Construction :
- Edged tape impregnated with a state B thermosetting Epoxy resin in aqueous environment.
Applications :
- Banding of induced parts of rotors, banding of inductor bobbins in traction motors, in transformers, in rotating machines.
AVANTAGES : Easy to use, good insulating properties, high tensile strenght and thermo shrinkable. Electrical losses are reduced. High insulation, good resistance to humidity and corrosion.
| Product | Thickness | Resin rate | Shrinkage at 140°C | Unit | Selection |
|---|---|---|---|---|---|
| T 019 | 0.28 mm | 30 % | 12 | M | |
| T 014 | 0.50 mm | 30 % | 12 | M | |
| TS 04 | 0.28 mm | 30 % | 14 | M |
