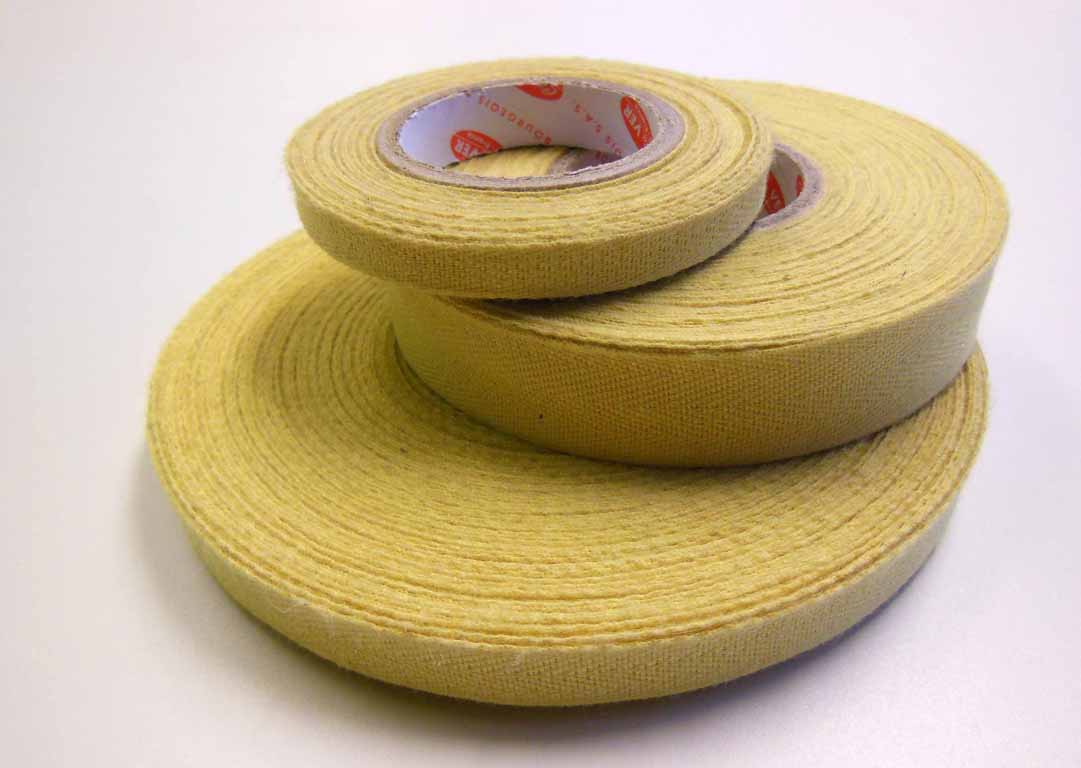

Para-Aramid Tape
Construction :
- Thermal class : H 200 °C.
- The tape is like a lace.
- Is slightly impregnated to avoid fraying out.
Applications :
- All bindings requiring a high strength for motors and transformers.
- Good impregnation power.
| Product | Width | Thickness | Breaking elongation | Breaking resistance | Unit | Selection |
|---|---|---|---|---|---|---|
| AR 26 | 8.0 mm | 0.35 mm | 2.0 % | > 50 daN | M | |
| ar 26 | 12.0 mm | 0.35 mm | 2.5 % | > 75 daN | M | |
| AR 26 | 20.0 mm | 0.35 mm | 3.0 % | > 150 daN | M |
