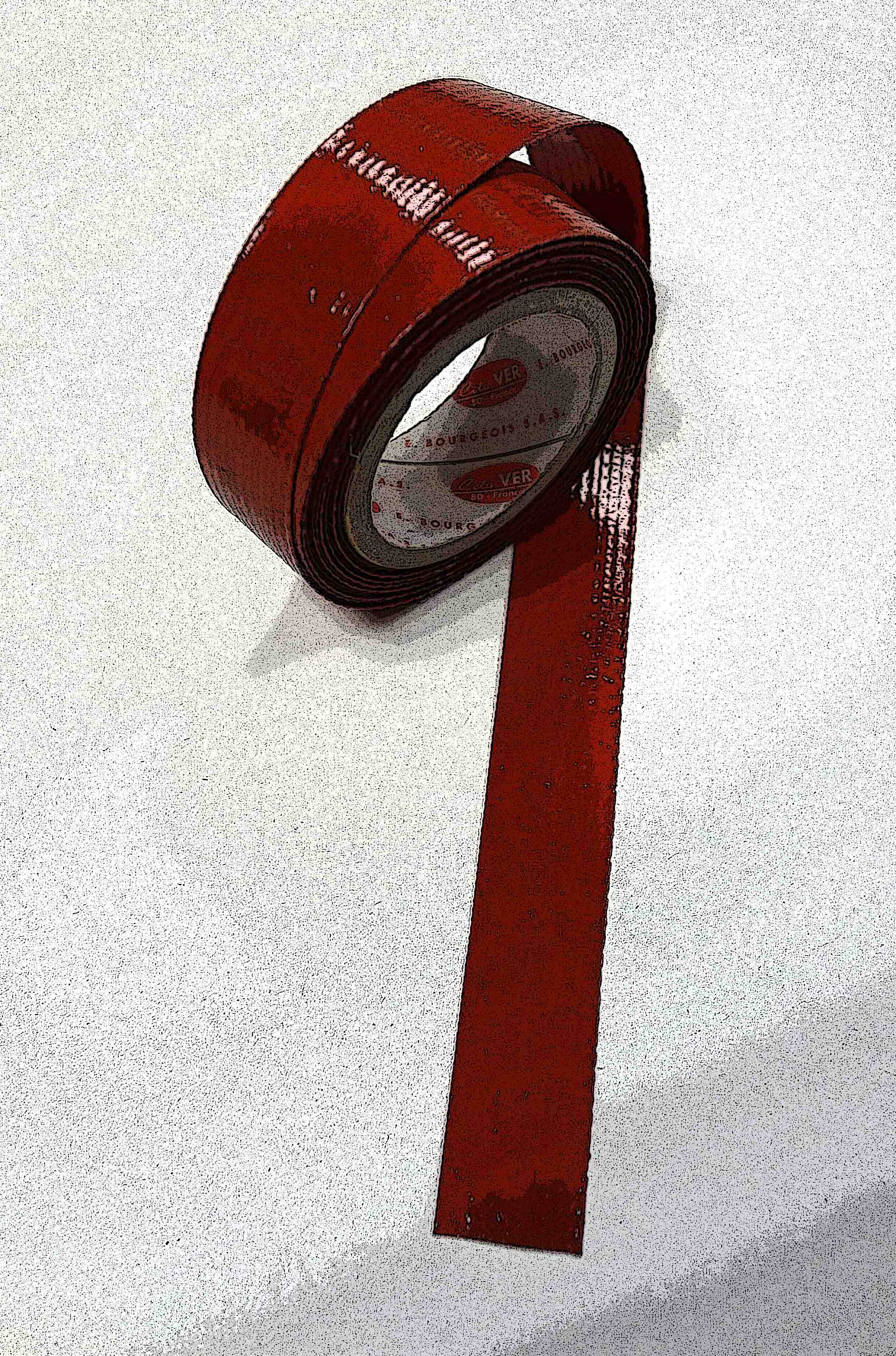

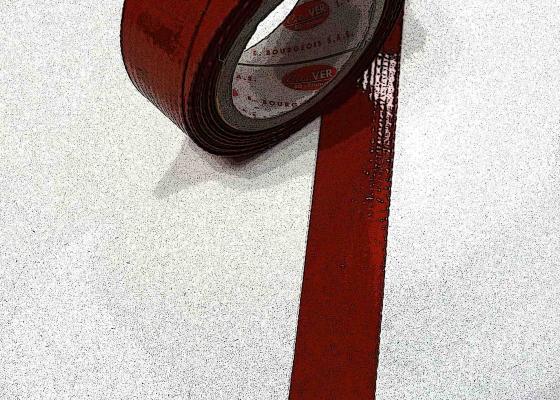

Elasto Silicone Cetaver® Tape
Construction :
- On CETAVER® tape base composed of Silionne wires in warp and weft.
- The ribbon is woven with edged edges.
- Coating with class H modified silicone rubber.
- This tape complies with EN 45545-2 standard fire-smoke index. Suitable for R23 requirements with HL3 rating as its value is greater than 32%.
Applications :
- Insulation of cables on static and rotary machines.
- Insulation on alternators, transformers when they can work in a humid environment.
- Insulation on the stator bars at the iron outlet to allow good electrical insulation and at the same time have good protection against dust and moisture.
Product | Raw material | Width | Thickness | Weight per meter square | Thermal class | Selection |
---|---|---|---|---|---|---|
S010SE/NC | Silionne + Caoutchouc de silicone | 20 mm | 0.32 mm | 450 g/m² | H |
