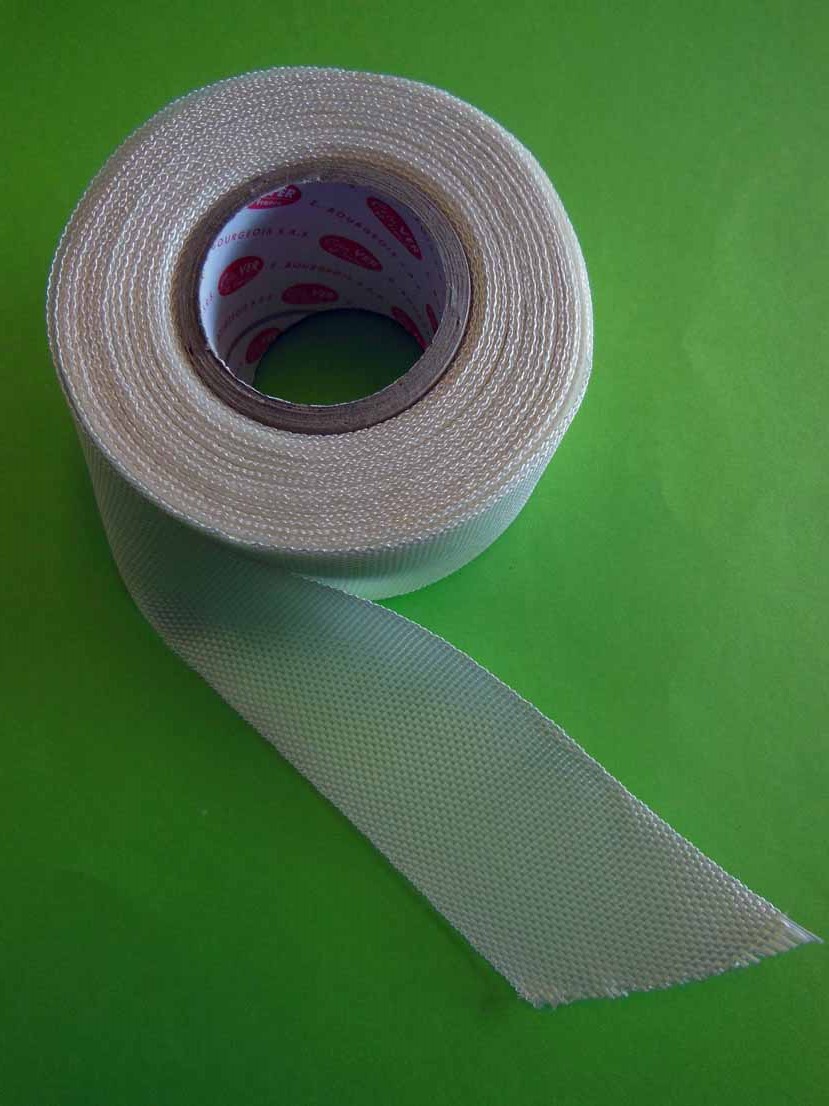

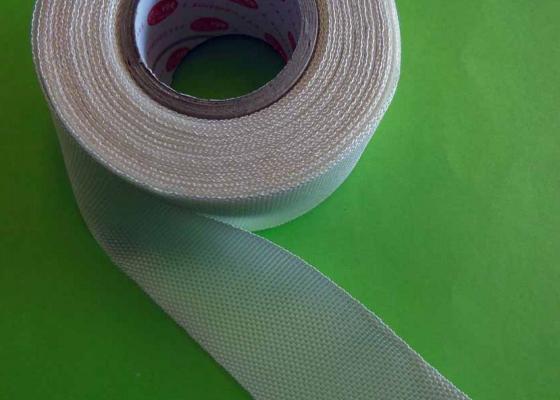

Cetaver® S glass tape
Our S glass tapes are made with S glass yarn.
S glass tapes have better charactersitics than E glass tapes.
S glass tapes are fitted for the insulation of supraconductive coils, and more particularly for the ITER project, because S glass yarn contains a very light content in Boron (0-0.1%).
Characteristics of S glass yarn compared with E glass yarn :
Very light content in Boron.
30% more resistant.
20% higher young module.
25% higher heat resistance.
| Product | Thickness | Weight per meter | Tensile Strength | Weaving | Unit | Selection |
|---|---|---|---|---|---|---|
| SS 08/NC AS | 0.15 mm | 170 g/m | ≥ 500 N/cm | Toile - Linen | M | |
| SS 11/NC AS | 0.25 mm | 270 g/m | ≥ 900 N/cm | Toile - Linen | M | |
| SS 05/NC AS | 0.25 mm | 220 g/m | ≥ 600 N/cm | Toile - Linen | M | |
| SS 12/NC AS | 0.15 mm | 200 g/m | ≥ 800 N/cm | Toile - Linen | M |
