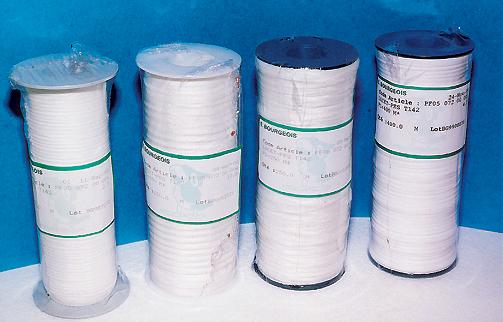

Teryl® flat braided lace
Construction :
- Flat braid of shrinkable Polyester yarns.
- Thermal class F 155°C.
Applications :
- All bindings with or without shrinkage.
on class F motors, transformers.
- Possibly class H.
- Good impregnation power.
| Product | Shrinkage at 140°C | Breaking resistance | Width | Unit | Selection |
|---|---|---|---|---|---|
| T 142 - 4 | 12 à 16 | ≥ 25 daN | 4.0 mm | M | |
| T 142 - 2 | 12 à 16 | ≥ 10 daN | 2.0 mm | M | |
| T 142 - 8 | 12 à 16 | ≥ 45 daN | 8.0 mm | M | |
| T 142 - 12 | 12 à 16 | ≥ 60 daN | 12.0 mm | M |
