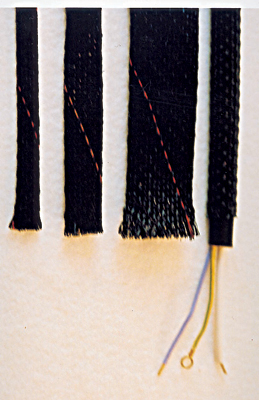

Teryl® expandable tubular braid
Construction :
- Flat and hollow expandable braid in Polyester monofilament yarns.
- The building of this braid can cover a large number of dimensions.
Applications :
- Mechanical protection of tubes, cables and bundles of cables.
| Product | Width | Diameter mini | Diameter maxi | Unit | Selection |
|---|---|---|---|---|---|
| T 101 - 4 | 4.0 mm | 2.0 mm | 6.0 mm | M | |
| T 101 - 6 | 6.0 mm | 4.0 mm | 8.0 mm | M | |
| T 101 - 8 | 8.0 mm | 6.0 mm | 10.0 mm | M | |
| T 101 - 10 | 10.0 mm | 7.0 mm | 13.0 mm | M | |
| T 101 - 12 | 12.0 mm | 8.0 mm | 16.0 mm | M | |
| T 101 - 14 | 14 mm | 10 mm | 18 mm | M |
