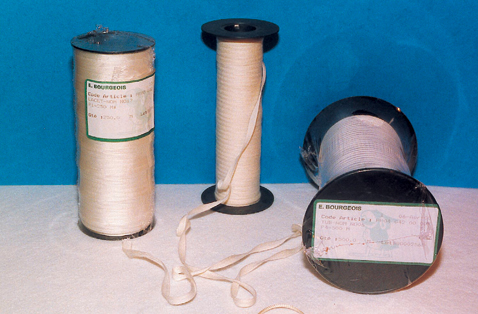

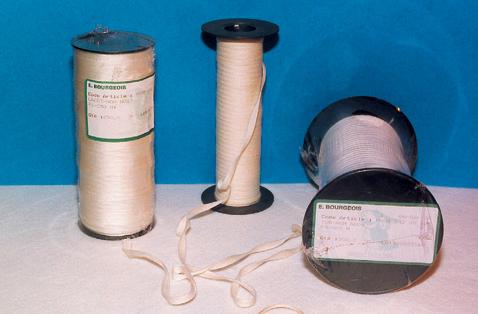

Nomex® flat braided lace
Construction :
- Flat braid made of aromatic polyamids yarns type Nomex®.
- Thermal class H 180°C.
- The braid is like a lace.
Applications :
- All bindings with or without shrinkage on class F motors transformers.
- Good impregnation power.
- Can be slightly coated to avoid fraying out.
| Product | Breaking resistance | Shrinkage at 140°C | Width | Unit | Selection |
|---|---|---|---|---|---|
| NO 17 - 2 | ≥ 15 daN | 0.3 à 0.5 | 2.0 mm | M | |
| NO 17 - 6 | ≥ 35 daN | 0.3 à 0.5 | 6.0 mm | M | |
| NO 17 - 12 | ≥ 90 daN | 0.3 à 0.5 | 12.0 mm | M |
