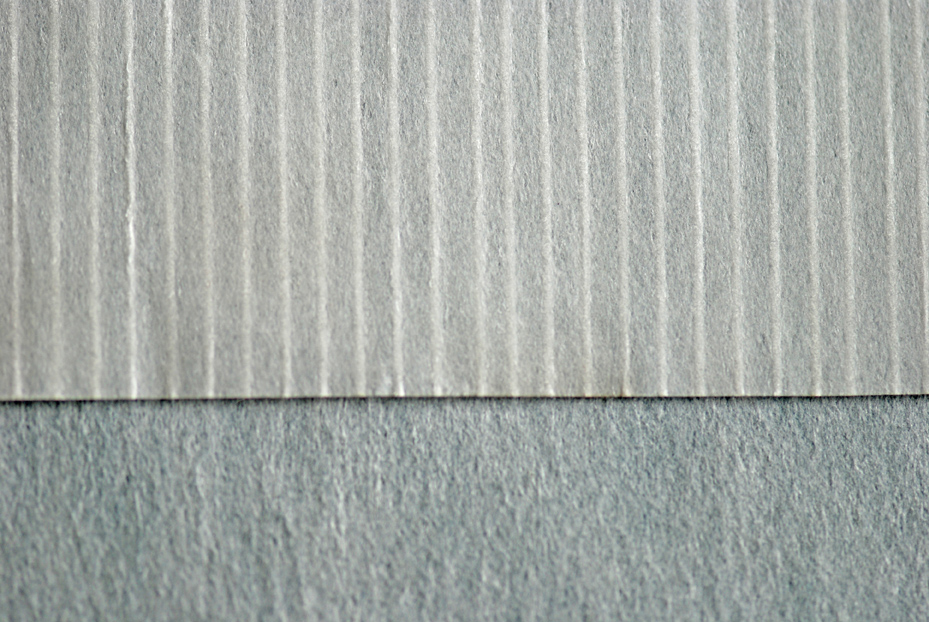

Thermowelded Polyester Electrifeutre®
Construction :
- 100% Polyester fibres.
- Fibres assembled by thermowelding without binder.
- TST : without reinforcement yarn.

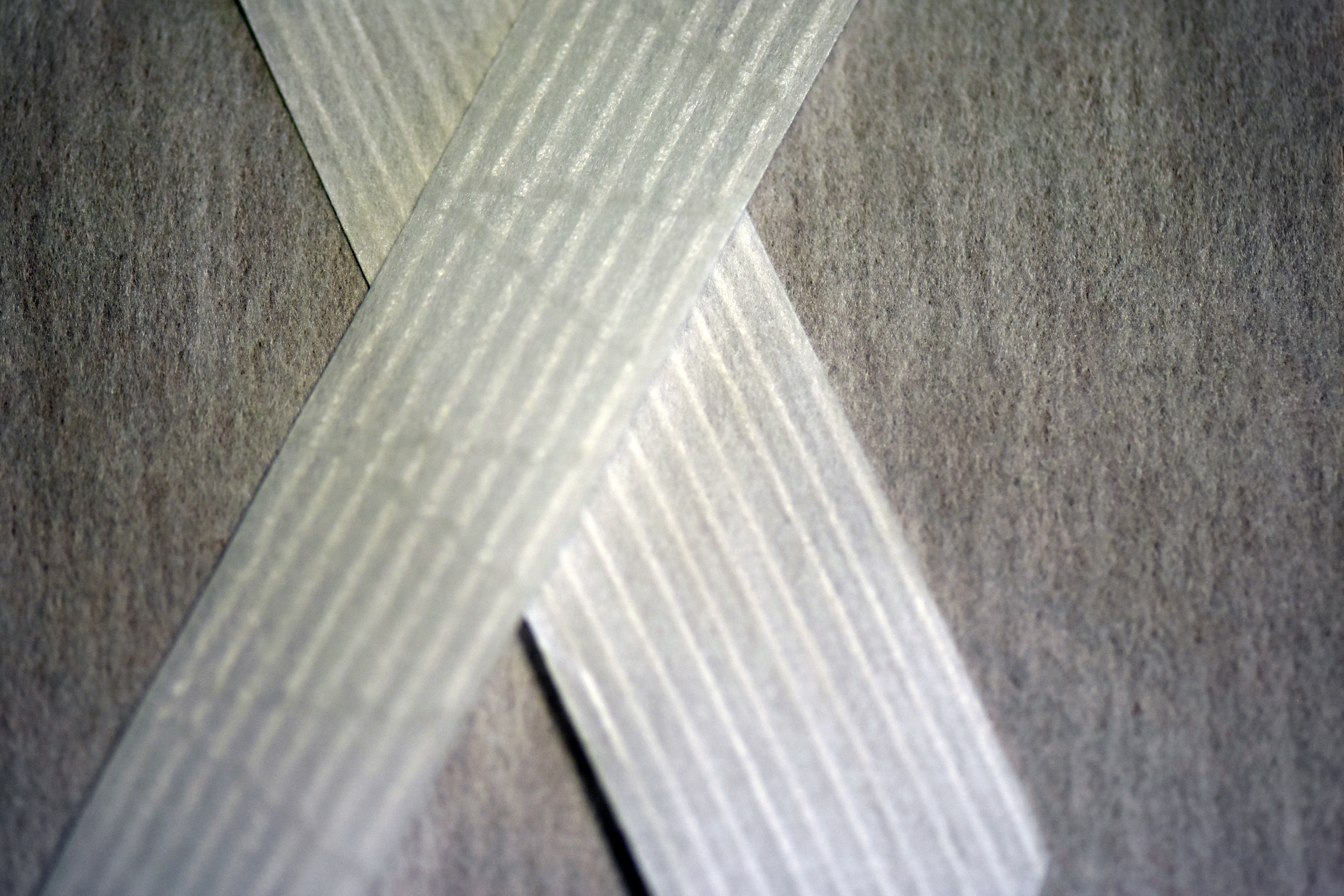

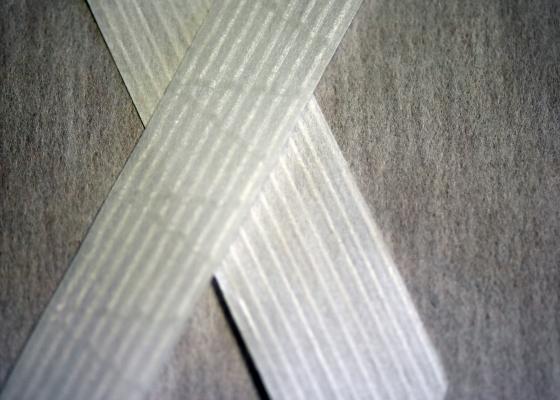

- TST 2 FR : with reinforcement yarn lengthways to have a good breaking resistance.
Applications :
- TST : Taping of motors sections,complexes making, with various films and mica splittings.
- TST 2 FR : Taping requiring a higher breaking resistance than TST. The reinforcement yarns avoid elongations or putting out of shape during impregnation.
Concerned industries :
Big electrical equipment: rotors, electrical motors, transformers,
condensers, complexes.
| Product | Temperature resistance | Weight per meter square | Thickness | Unit | Selection |
|---|---|---|---|---|---|
| TST 2A31 | 155 °C | 20 g/m² | 0.035 mm | M² | |
| TST 6 | 155 °C | 60 g/m² | 0.078 mm | M² | |
| TST 2FR7 | 155 °C | 72 g/m² | 0.105 mm | M² | |
| TST 2FR8 | 155 °C | 82 g/m² | 0.115 mm | M² |
