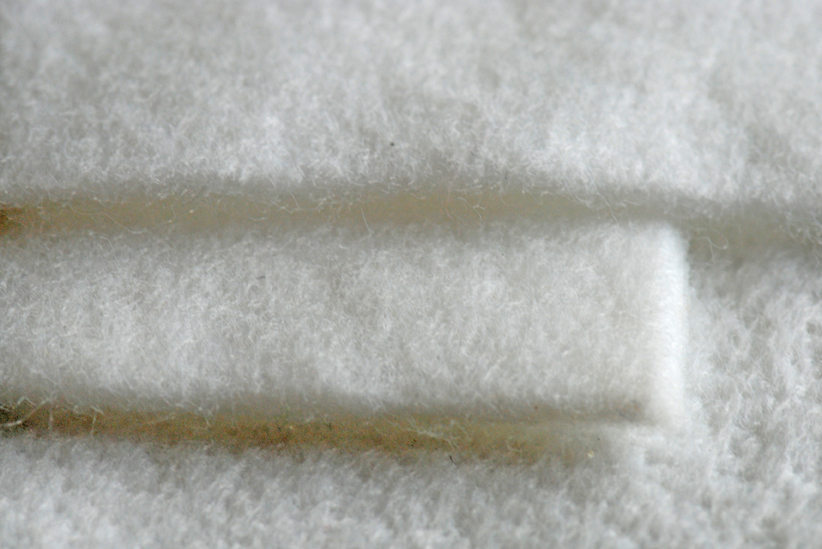

Polyester needled Electrifeutre®

Construction :
-  100% Polyester fibre.
-  Needled fibres assembled by felting.
-  Without binder, fibres are heat stabilized to avoid heat shrinkage .

Applications :
- Stuffings, fillings, taping, varnishes or resins support.
- Composition of cables and sections insulations.
- Impregnation under vacuum.

NOTA: After impregnation and curing, it becomes a compact block of fibres - resins without any risk of elamination.
- Great absorption power.
- Avoids resin leaking.
- Combined with our Cetaver® tapes or our mixed Teryl®/Cetaver® tapes, it allows a new type of insulation.
  - Teryl® = Polyester tapes.
  - Cetaver® = Glass tapes (silionne).

Concerned industries :
Big electrical equipment rotor, electrical motors, transformers, cables.
Manufacturers of complex, varnished or impregnated cloths.



Product Weight per meter square Thickness Unit Selection
TFT 15 150 g/m² 1.5 mm
TFT 30 300 g/m² 3.0 mm
TFT 30.1 300 g/m² 2.0 mm
TFT 60 600 g/m² 4.0 mm
