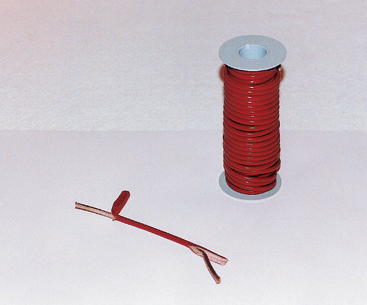

Cetaver® 2 braids Epoxy + Elasto Silicone sleeving
Construction :

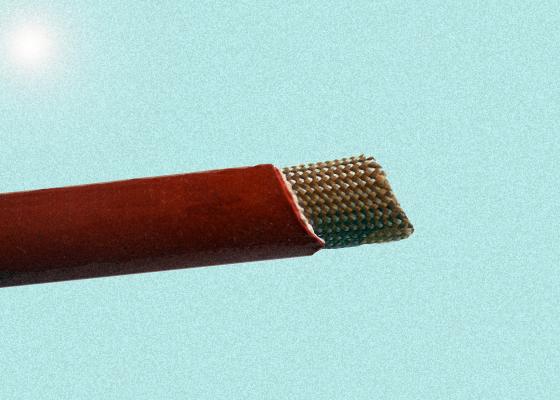

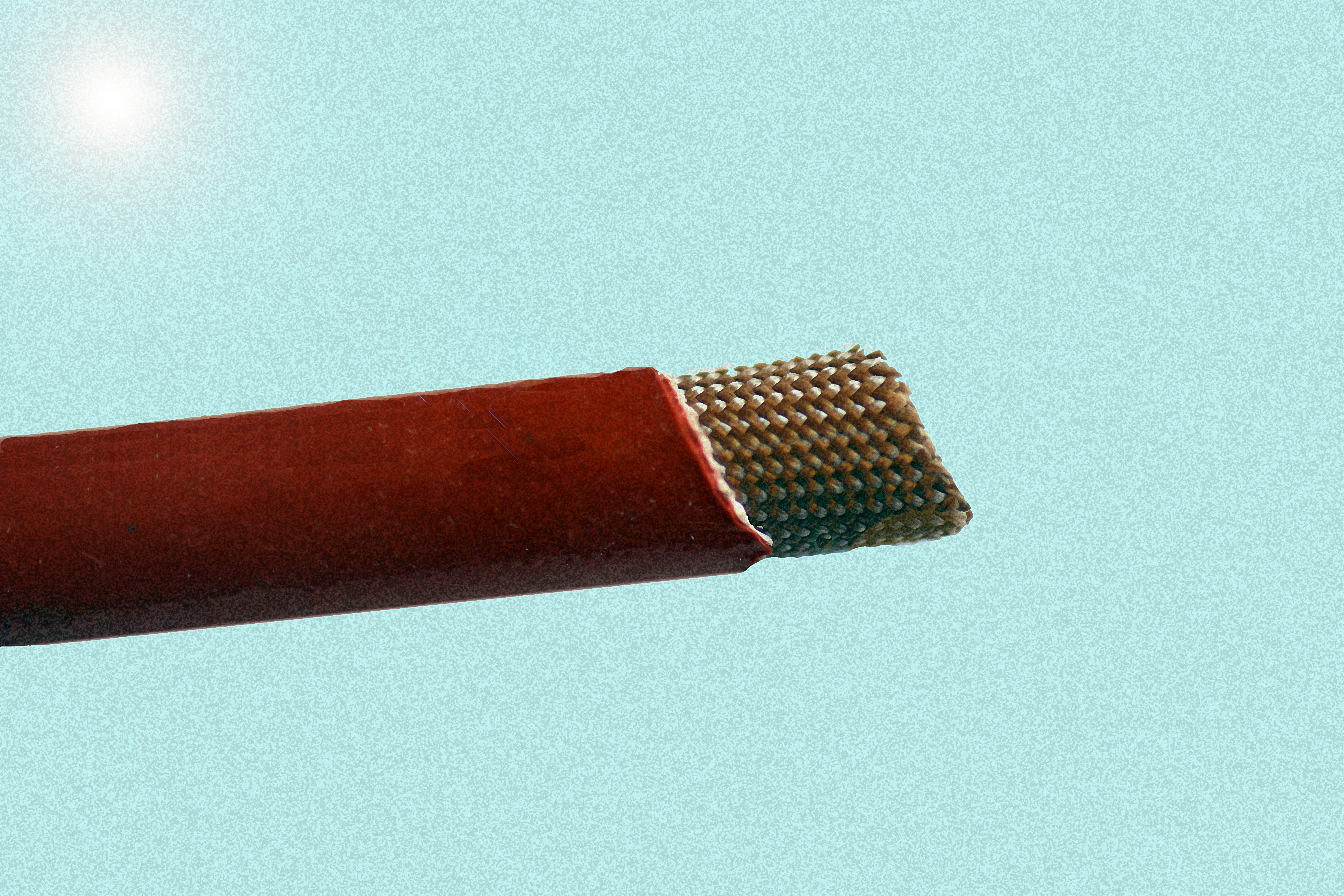

- Round and hollow glass fiber E braid with tight stitches.
- Made of 2 superposed braids.
- The first braid is impregnated with epoxy and heat treated.
- The second braid is varnished with silicone rubber.
Applications :
- Class H insulations - Motors - Transformers - Starters - alternators.
- Recommended for insulation which requires a very good mechanical resistance due to the 2 braids.
Product | Thermal class | Temperature resistance | Dielectric strength | Diameter | Unit | Selection |
---|---|---|---|---|---|---|
EP + ES | H | - 60 à + 220 °C | ≥ 3000 Volt | 2.0 à 12.0 mm | M - P |
