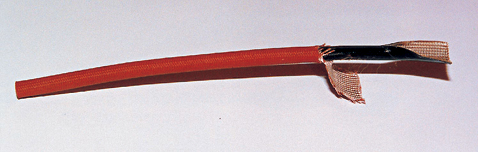

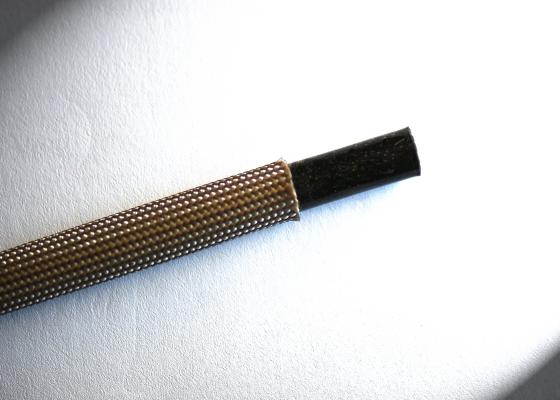

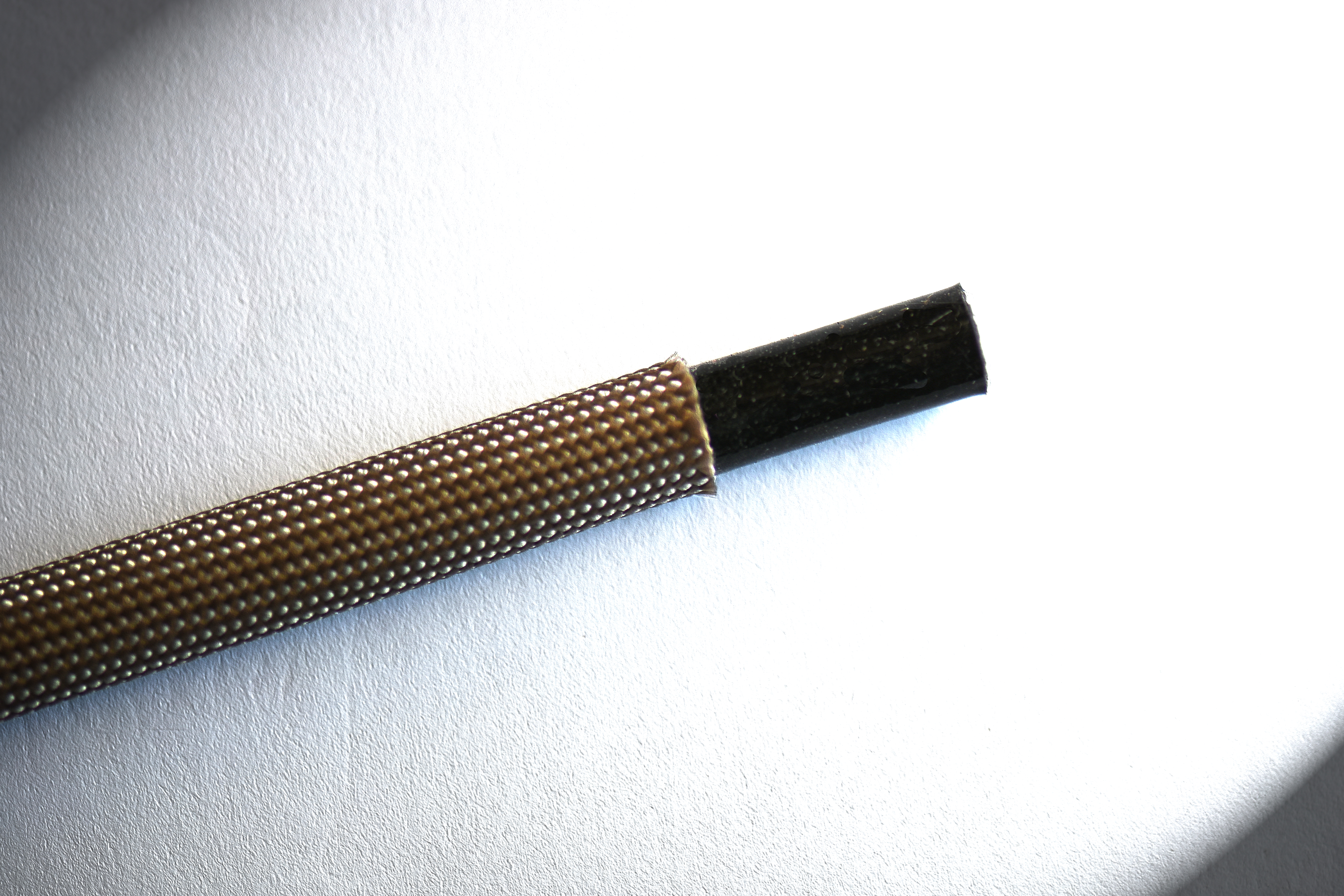

Cetaver® 2 braids Elasto Silicone + Epoxy sleeving
Construction :
- Round and hollow glass fiber E braids. Tight stitches.
- 2 Superposed braids.
- The first braid coated with Black silicone rubber.
- The second braid coated with Epoxy resin..
Applications :
- Grade H insulations on machines working in aggressive environment, oils, petrol,
Ex : electromagnetic speed reducers.
- Insulation which require a very good mechanical resistance thanks to the 2 braids.
Product | Thermal class | Temperature resistance | Dielectric strength | Diameter | Unit | Selection |
---|---|---|---|---|---|---|
ES + EPOXY | H | - 70 à + 220 °C | ≥ 3000 Volt | 2.5 mm | M - P | |
ES + EPOXY | H | - 70 à + 220 °C | ≥ 3000 Volt | 3.0 mm | M - P |
