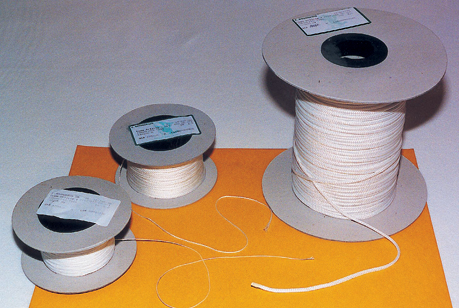

Teryl® braided cord
Construction :
- Round and solid braid made of continuous polyester yarns.
- Thermal class F 155°C.
- Made unbleached.
Applications :
- Fastening, binding, bandings of elements.
- The shrinkage occuring with higher or lower temperatures allows to have a good binding which prevents from moving.
| Product | Diameter | Breaking resistance | Elongation at 2/3 of the breaking | Shrinkage at 140°C | Unit | Selection |
|---|---|---|---|---|---|---|
| T 168 | 0.5 mm | 5 daN | ≥ 12 % | ≤ 10 | M | |
| T 263 | 1.0 mm | ≥ 20 daN | ≥ 12 % | ≤ 10 | M | |
| T 109 | 1.0 mm | ≥ 55 daN | ≥ 12 % | ≤ 10 | M | |
| T 111 | 1.5 mm | ≥ 80 daN | ≥ 12 % | ≤ 10 | M | |
| T 113 | 2.0 mm | ≥ 120 daN | ≥ 12 % | ≤ 10 | M | |
| T 254 | 2.0 mm | ≥ 100 daN | ≥ 12 % | ≤ 15 | M | |
| T 254 | 2.0 mm | ≥ 100 daN | ≥ 12 % | ≥ 15 | M | |
| T 143 | 3.0 mm | ≥ 200 daN | ≥ 12 % | ≤ 10 | M | |
| T 255 | 3.0 mm | ≥ 200 daN | ≥ 12 % | ≥ 15 | M | |
| T 146 | 4.0 mm | ≥ 300 daN | ≥ 12 % | ≤ 10 | M | |
| T 256 | 4.0 mm | ≥ 300 daN | ≥ 12 % | ≥ 15 | M | |
| T 257 | 5.0 mm | ≥ 400 daN | ≥ 12 % | ≥ 15 | M |
