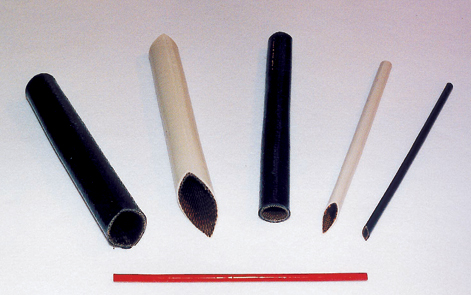

Cetaver® Elasto Silicone extensible sleeving

Construction :
- Round and hollow glass fiber E. braid, wide stitches, in order to adjust to irregular forms without heating.
  Contrary to thermoshrinkable sleevings.
- The braid is braided with silicone rubber.

Applications :
- Thermal class H insulation.
- Insulation of conductive bars, connexions.
- Protection of soldering, irregular forms.
- Cabling.

Product Thermal class Temperature resistance Dielectric strength Diameter Unit Selection
GRADE A - 8 KV H - 25 à + 235 °C ≥ 8000 Volt 2.0 à 25.0 mm M - P
GRADE B - 4 KV H - 70 à + 235 °C ≥ 4000 Volt 2.0 à 25.0 mm M - P
